2021 Azimut Verve 47

Accommodations

• Number of Single Berths

  --

• Number of Heads

  --

• Passenger Capacity

  --

Options:

• Seakeeper Stabilizer NG6
• Audio / video package with decoders and sat antenna
• Tracvision tv3 usa
• Painted hull, gunwhale and hardtop
• Raymarine platinum package
• Estech on cockpit, aft swim platform, swim platform and side beach platform and wheelhouse
• Advance package
• Bow thruster
• Mercury maneuvering package
• Electric awning in cockpit
• Painted motors cowlings
• 40″ tv in cockpit w/ hi-lo mechanism
• Full monitoring system
• Luxury exterior lighting package
• Electric hi-lo cockpit table (deck flush)
• BBQ in cockpit furniture
• Sun shade sail on bow w/ removable carbon fiber poles
• Electrically operated porthole on htop
• Sofa bed in dinette w/ hi-lo table
• Wooden floor in dinette and galley
• Removable table on bow in carbon fiber finishing
• Painted boot stripe for painted hull
• Cooktop in cockpit furniture
• Sunbathing cushions on bow w/ foldable backrest in upgraded Spradling fabric
• Winecooler
• N.2 underwater lights on sides (1 per side)
• 2 underwater lights on transom
• Interiors and exteriors dimmered lights
• Storage predisposition for seabob and inflatable
• Set of cutlery, crockery and glasses
• Set of linen for cabins
• Stainless steel anchor
• Safe in master cabin
• Set of towels (one person)
• Toilet w/ bidet faucet feature
• Stern sofa cover
• Bow sunbathing and setee cushions covers
• Appliances upgrade
• Chaincounter in main helm
• Peace of mind warranty
• Extra conduits
• Backrest in upgraded spradling fabric
• Predisposition for watermaker
• Mercury skyhook system
• Mercury maneuvering joystick w/ dedicated extra gps antenna
• Automatic outboard flushing system
• Decor upgrade
• Windshield cover
• Pilot seat and dashboard covers
• Outboard flushing system

Standard Features

• Exterior
• Hard Top

Carbon fiber Hard Top equipped with:

• Lights mast
• Compliant navigation lights
• Electric adjustable spot with remote control (for USA version)
• Portlight with manual opening system

Bow

• Chain locker provided with drainage, accessible through hatch
• Remote control for fore winch
• Stainless steel anchor line anti-rubbing protection
• Hatch (emergency exit from master cabin)
• Sunbed area with built-in glass holders
• Grabrails on sunbed area sides
• C-shaped seating area at the bow
• Fridge
• Scuppers

Walk Arounds

• Access to port walk around from the cockpit
• Access to starboard walk around from the wheelhouse
• Rubber rub-rail with stainless steel insert
• Stainless steel pulpit with handrail

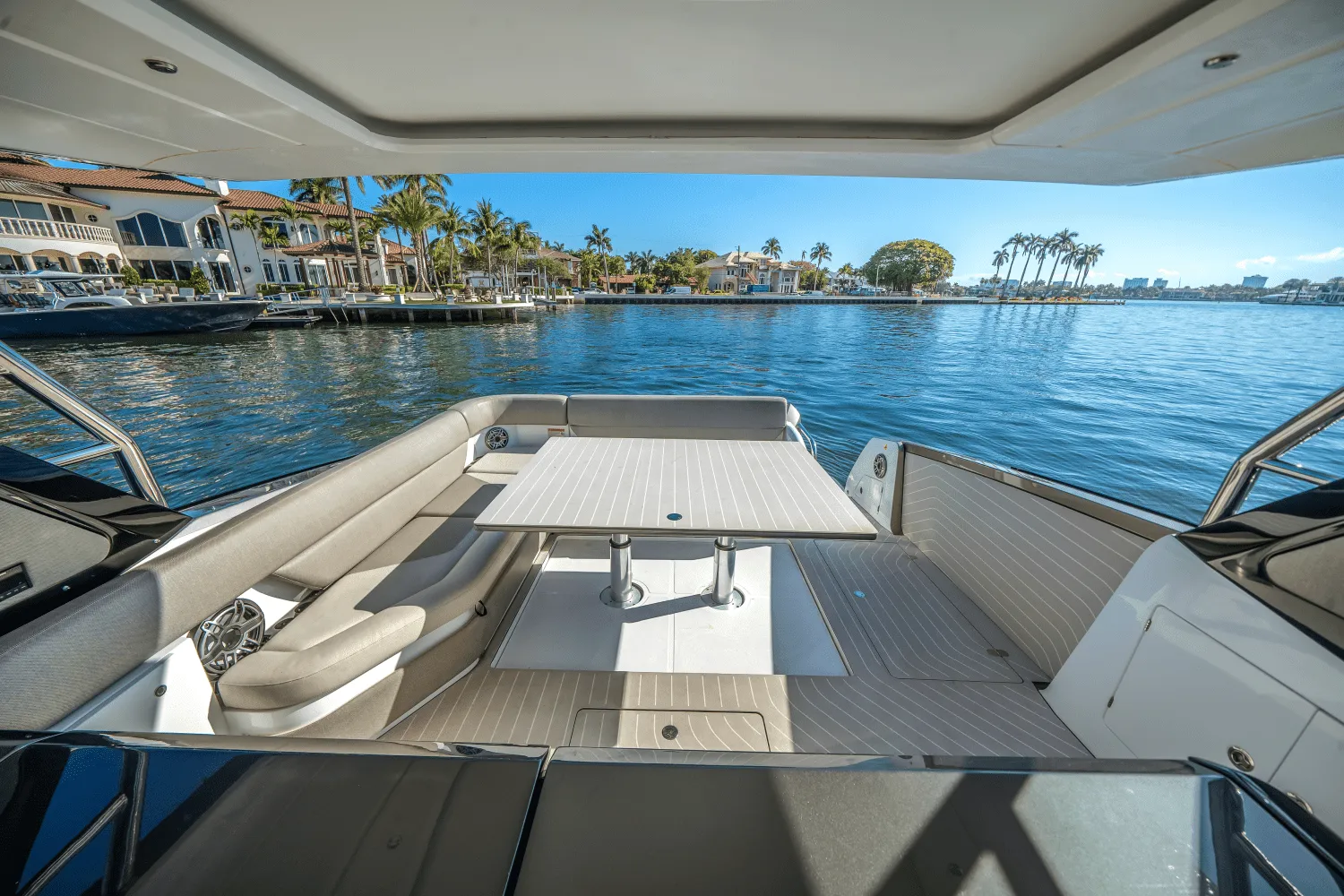

Cockpit

• One access on port side through stainless steel gate
• Port side platform with electric control
• Manual pull-out swimming ladder, located inside the side platform
• “L” shaped sofa in dining area

Cabinet installed crossways, aft of the wheelhouse, with:

• Icemaker
• Fridge
• Engine room access, through hatch located at the center of the cockpit
• Non-slip floor
• Lighting with LED spotlights and bars and mounted recessed on the fabric upholstered ceiling by means of a stainless steel frame
• Scuppers

Aft Platform and Hold

• Hold possibly to be used as a garage for seabob, equipped with manual hatch
• Non-slip floor
• Extractable shower head
• Port side external GRP step for access to the cockpit
• One aft gate

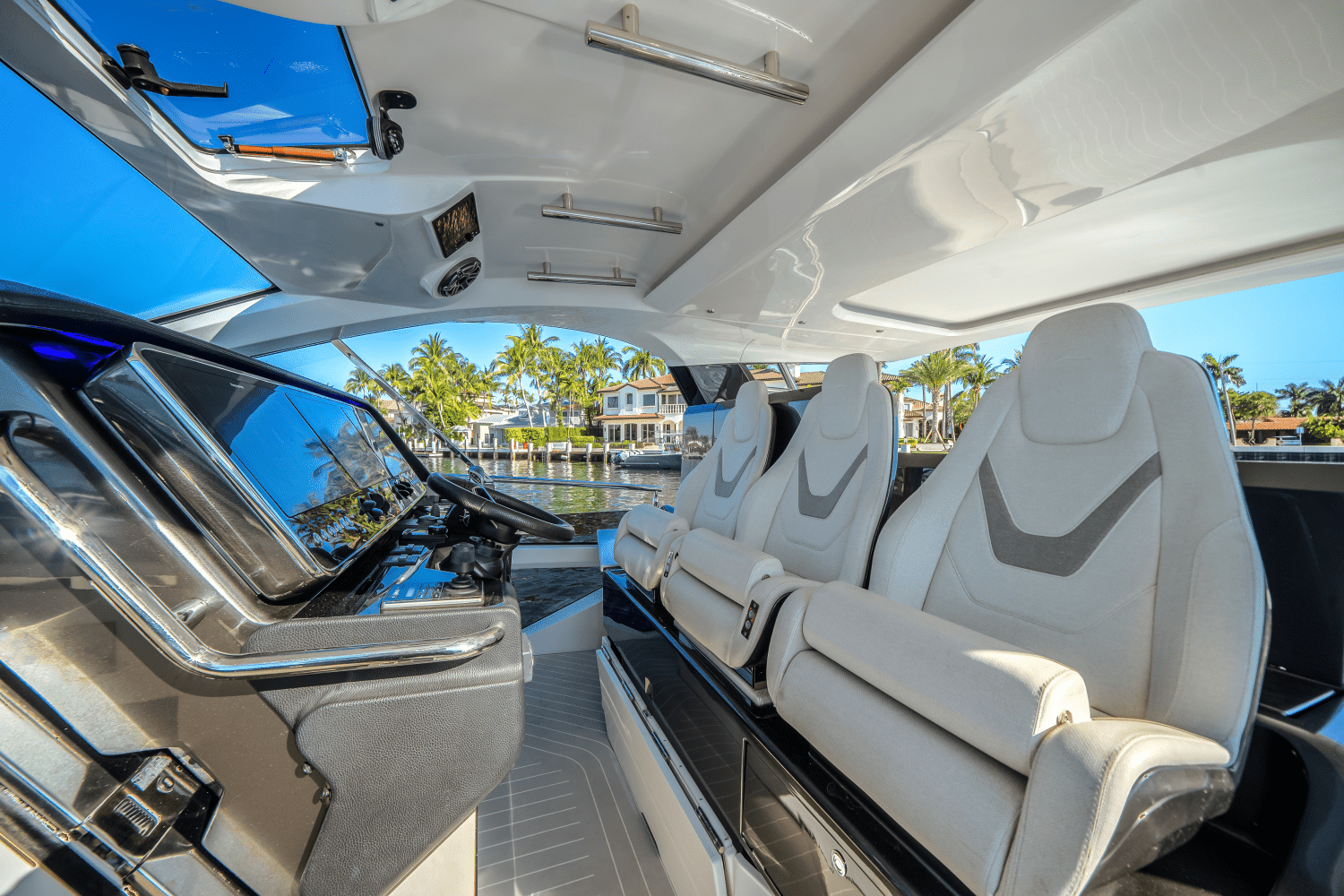

Wheelhouse

The wheelhouse is located at the center; it is accessible from starboard side, through the starboard walk around, or from port side through the aft gate and the cockpit, or through the port walk around. In includes:

• Commander seating area with electric adjustments
• Co-pilot seating area on left and right sides of the commander
• Leather-covered steering wheel
• Dashboard including the following controls:
• Magnetic compass
• 7″ Vessel view Mercury display
• Electronic navigation instruments, BRONZE version (*)
• VHF communication system (for USA version)
• Audible alarm controls
• windscreen wiper control
• USB socket
• Dedicated lighting
• Adjustable air conditioning outlets

Located amidships, full-beam, it is the space that connects the master and guest cabins, the head, and, through the manual sliding hatch, the exterior.

It is essentially composed of:

• “L” shaped three seater sofa, placed longitudinally on port side
• Table with fixed stainless steel base and HPL plane
• Household appliances:
• Induction type range
• Fridge/freezer
• Microwave oven + grill
• Carpeted floor
• Port and starboard windows with builtin portlight, with curtain
• TV pre-installation above galley cabinet
• LED technology spotlights
• LED courtesy lighting under the steps
• Sockets

Master Cabin

Located at the bow, it is composed of:

• Wooden access door
• Double bed with large locker underneath
• Mattress, pillows and bedspread
• Leather-coated headboard
• Two reading lights
• Two bedside tables
• One wardrobe column on starboard side with hanger bars and external mirror
• One column on port side with external mirror
• Carpeted floor
• Two windows with built-in portlights on port and starboard sides, with curtains
• Lighting with spotlights on leather-upholstered ceiling
• Sockets
• Hatch for escape way on fore deck

Guest Cabin

Located abaft the dinette, it is composed of:

• Wooden access door
• Two fixed single beds with system to transform them into a double bed
• One storage located under the two beds
• Mattresses, pillows
• Leather-coated single headboard
• Two reading lights
• One bedside table between the beds
• One wardrobe on starboard side
• Carpeted floor
• One side window with curtain
• LED technology spotlights
• Sockets

Head

Located on starboard side, it is composed of:

• Access from dinette through wooden door
• Washbasin on the top in HPL
• Faucets
• Storage under the washbasin
• Mirror above the washbasin
• Toilet
• Shower enclosure with:
• Glass access door and aluminum frame
• GRP shower enclosure walls and painted insert
• Tilting seating area
• GRP non-slip floor
• Mixer tap
• Hand-held and ceiling-mounted shower head
• Lighting on ceiling
• Laminated floor
• Side windows with recessed portlight, provided with curtain
• Head accessories
• Lighting on ceiling
• Socket

Systems

Electric system

Main characteristics:

• Shore-powered power supply
• Electric panels for systems area:
• One main panel 12/24 V DC, located aft of the petrol tank, in the engine room
• One shore differential panel 230 V AC located in the cockpit locker

Electric panels in cabins area:

• One main panel 230 V AC for power circuit breakers, located in technical storage and accessible from guest cabin (aft, starboard)
• One distribution panel 230 V AC – 24 V DC, located in storage, on port side of the access to the dinette from outside
• Onboard voltages:
• 230 V – 50 Hz AC STD
• 24 V DC from battery set
• 12 V DC from battery set and AC/DC voltage reducer

Generator (for USA version)

• One 14 KW / 60 Hz generator with ignition protected kit

Shore Power Sockets

• EU one 230 V AC – 50 A socket
• The AC power sources terminate on the main electric panel in the engine room, for the 230 V network. The AC power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches

Batteries

• Four engine batteries 12 V – 90 Ah
• Four service batteries 12 V – 90 Ah
• One 12 V – 70 Ah battery for generator (for USA version)
• Two 12 V – 25 A engine generators (one of which charges also the generator)
• One 24 V – 60 A service battery charger

Lights and Sockets

• 230 V AC sockets for main utility power supply, EU type
• USB sockets
• Internal lighting: 24 V LED type
• External lighting: 24 V LED type

Propulsion

• Four V8 MERCURY outboard engines, 450 hp each

STD (BRONZE) Electronic Navigation Instruments

• For a detailed list of alternative/additional equipment available, please refer to the Optionals price list.

Fuel system

• One petrol tank, made in aluminum, installed transversally in the engine room, total 2340 l (618.2 US.liq.gal.)
• One electronic fuel level sensor monitored through indication on the wheelhouse
• One visual level gage
• Four engine filters
• One tank vent
• Remote petrol shut off from tank to engine through solenoid valves
• Refueling on deck, starboard side

Diesel System for Generator (for USA version)

• One 150 l (39.6 US.liq.gal.) diesel tank, in aluminum, located forward of the service compartment, at the center, under the petrol tank
• Two fuel level sensors for local monitoring and remote monitoring from the wheelhouse
• Manual valve and RACOR 120 pre-filter on fuel delivery line to generator
• Manual valve on fuel return line from generator
• One tank discharge on starboard bulwark, with siphon
• Refilling through a filler cap located aft of the starboard bulwark

Bilge system

• Main system composed of two automatic and independent pumps located in each watertight compartment:
• One in engine room
• One (central) in the locker under the guest cabin floor (aft cabin)
• Secondary or auxiliary system composed of a manual bilge pump, whose control is located inside the locker on port side forward of the cockpit which allows, through a switch, to suck from the zone under the guest cabin bed or from the service compartment.

Fresh Water System

• 300 l (79.3 US.liq.gal.) plastic fresh water tank in technical locker, under the galley dinette floor
• Water refilling through opening in central part of starboard walk around
• Water pressure pump unit (24 V) located in the engine room, starboard side, with electronic control
• 40 liter (10.6 US.liq.gal.) water heater
• 230 V – 50 Hz AC – located under the dinette/galley floor
• Fresh water toilet flushing
• System that can be isolated by ACORN manifolds located on starboard side at the head bulwark

Black Water System

• One TECMA toilet
• One 106 l (28 US.liq.gal.) Dometic tank with built-in pump, located in the engine room

Gray Water System

• 9 l (2.4 US.liq.gal.) plastic collection tray, located under the guest cabin floor
• One outboard discharge pump
• Two air conditioning condense collection trays under the dinette/galley floor and under the guest cabin floor (together with the air conditioning system – USA version)

Ventilation / Extraction

• One extractor located in the engine room, port side, approx. 7.2 m3/min (254.27 cu.ft/min) connected to the outside through ø 100 mm (3.94 in) pipe. The air intake is from starboard side through an opening provided with water separator

Air Conditioning System (for USA version)

• Power supply from onboard generator or from shore
• One dedicated seawater electric pump with relevant seawater intake installed in the service compartment

Distribution:

• – Dinette/Galley and Guest cabin: 12000 BTU
• – Master cabin: 6000 BTU
• – Wheelhouse: 8000 BTU
• – Temperature control panel for each air conditioning unit
• – Sea outlet for water used for air conditioning
• – Two condense collection trays with vent and pump for outboard discharge (see “gray water system”)

Other Systems

• Humphree X-450 Interceptor
• Engine room dry chemical fire extinguishing system with manual control
• Carbon monoxide detection system composed of three sensor located in Master cabin, Guest cabin and Dinette/Galley (for USA version)

Equipment

• One telescopic boat hook
• Two mooring lines
• Fender lines: 18 m (59’1”)
• Six fenders
• Six black fender covers
• One Owner’s manual
• One wooden boat model
• Two floating keyrings
• One large bag with logo for manuals
• One remote control holder with logo

2021 Azimut Verve 47

Experience the epitome of luxury and performance with the 2021 Azimut Verve 47, now available at MarineMax Naples in sunny Florida. With its sleek lines and innovative design, this vessel captures the essence of adventure on the water, offering an exhilarating escape for those who seek both speed and elegance.

Performance & Power

Equipped with four powerful Mercury Verado outboards, delivering a remarkable total engine power of 1800 hp, the Verve 47 promises impressive performance and agility. Glide smoothly over waves and feel the rush of speed as you navigate through coastal waters, making every journey unforgettable.

Craftsmanship & Luxury

Boasting exquisite craftsmanship, the Azimut Verve 47 features luxurious interiors designed for ultimate comfort. Enjoy open spaces adorned with high-quality materials and state-of-the-art amenities that elevate your boating experience to new heights.
